SquishBox Documentation

The SquishBox is an add-on board for the Raspberry Pi 3B+/4 that bundles a DAC, 1/4” ouputs, MIDI in/out with minijacks, a 16x2 LCD, and a pushbutton rotary encoder. It is designed to be an embedded computer for audio applications, such as a synth module or audio player. It has a python API for easy access to buttons, LCD, and system functions. Several pre-built apps are included.

• Official Documentation

• Source Repository

The SquishBox can be fabricated from scratch using the included design files, or obtained as a kit or fully assembled device from the Geek Funk Labs store. Software is installed in an existing Raspberry Pi OS using a command-line installer script.

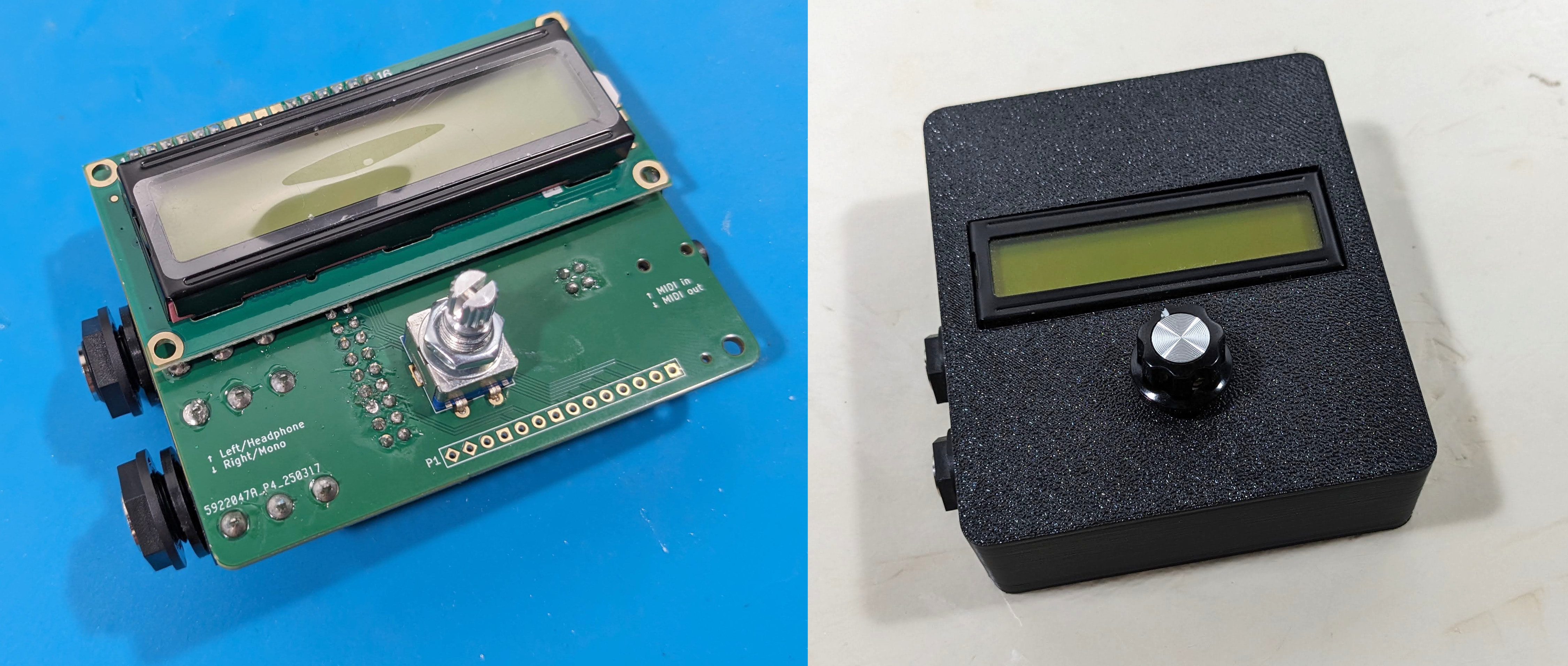

Assembled SquishBox electronics (left) and enclosure (right)

Contents:

• Quick Start
  • Fabricating PCB and Enclosure
  • Putting it Together
  • Installing the Software
  • Basic Usage
• User Guide
  • Basic Controls
  • Hardware Controls and Connections
  • Included Apps
• Assembly
  • Components
  • Electronics Assembly
  • Final Assembly
• Software
  • Application Model
  • Using the LCD
  • Menus
  • Input/Output Access
  • Miscellaneous Toos
