Reference¶
PCB¶
This section collects hardware documentation, fabrication references, and connector pinouts for users modifying or servicing the SquishBox.
Download manufacturing files from https://github.com/GeekFunkLabs/squishbox/tree/main/hardware/pcb/fabrication.

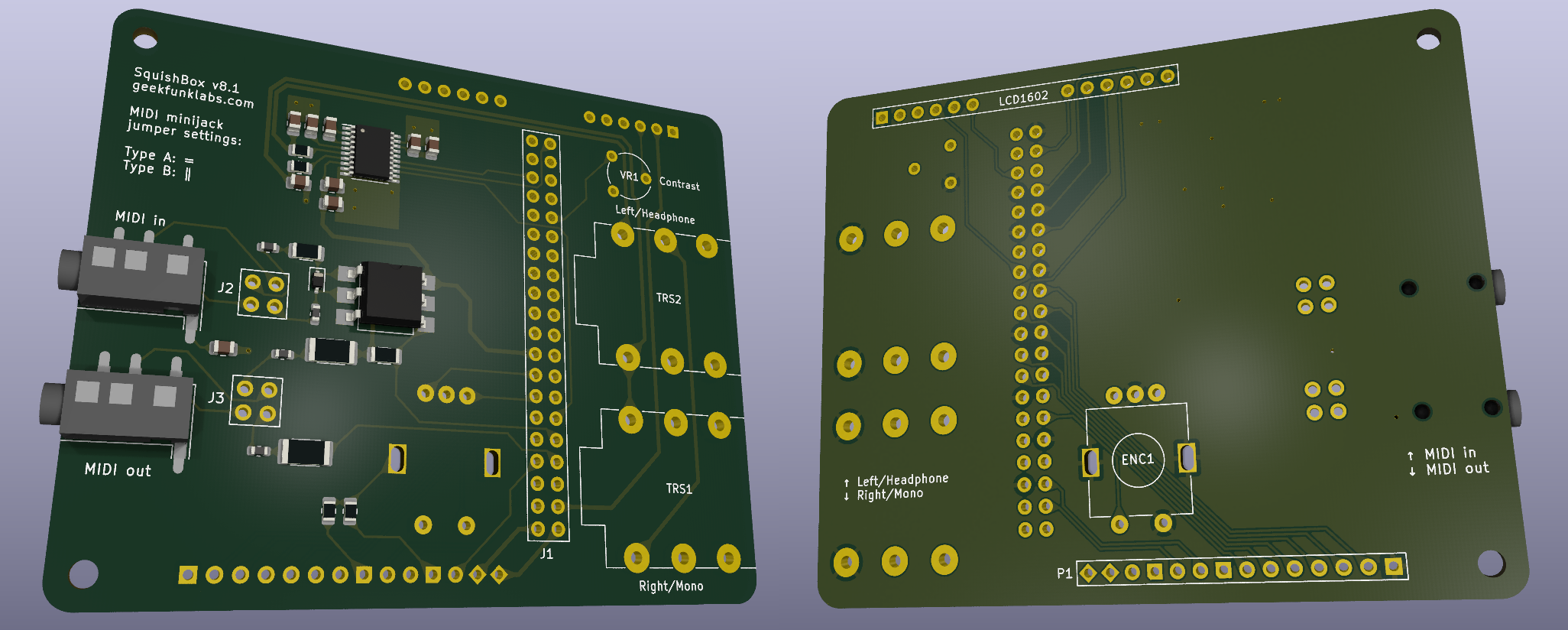

3D Render of SquishBox PCB with surface-mount components¶
Bill of Materials¶
The Interactive BOM allows part identification, placement lookup, and assembly cross-referencing.
Schematic¶
The full schematic is available below. Through-hole components are crossed out to indicate they are sourced separately.
PDF version:
Download
P1 Header¶
Unused Raspberry Pi GPIO pins are broken out to header P1 for switches, LEDs, sensors, and other add-ons.
Pins 4 and 7 include built-in 1k pull-down resistors to ground, allowing LEDs to be connected directly.
P1 Pin |
Pad Shape |
Function |
|---|---|---|
1 |
diamond |
5V |
2 |
diamond |
3.3V |
3 |
circle |
GPIO4 |
4 |
notched |
GPIO17 via 1k to GND |
5 |
circle |
GPIO2 (I2C SDA) |
6 |
circle |
GPIO3 (I2C SCL) |
7 |
notched |
GPIO27 via 1k to GND |
8 |
circle |
GPIO23 |
9 |
circle |
GPIO24 |
10 |
circle |
GPIO10 |
11 |
circle |
GPIO25 |
12 |
circle |
GPIO9 |
13 |
circle |
GPIO11 |
14 |
square |
GND |
API¶
The classes and functions below form the programming interface for the squishbox package.
